Автоматичний екстрактор компонентів крові DELCON Giotto Monza

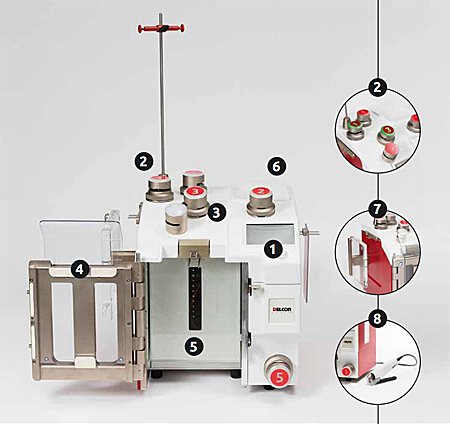

MAIN ADVANTAGES

1. The color graphic touchscreen displays information in the form of icons and animations.

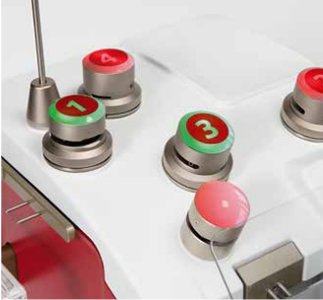

2. The two-color backlight on the clamps indicates the operational status.
3. Clamp #3 regulates the flow rate.
4. A press with splash protection for operator safety, featuring a smooth and durable glass press that is easy to clean.
5. High-precision optical sensors in the main press - for accurate and quality separation of the leukotrombocyte layer.
6. RFID tags - 4 additional built-in antennas for reading and writing data without operator action.
7. Maximum flexibility - 5 clamps, 4 scales (optional external scale +1) and up to 2 presses.

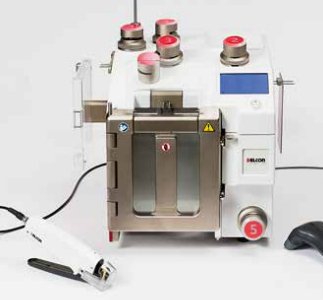

8. Individual configuration – optional sealer, barcode reader, and second side press.

GIOTTO MONZA IS:

• Any blood bags of the "Top-Top" and "Top-Bottom" types.
• 2 electronic presses with built-in scales, fully controllable in speed, position, and force.
• Automatic air removal procedure
• Excellent control of the leukotrombocyte layer in "Top-Bottom" bags
• Flow regulator with high-precision optical sensor
• Up to 5 scales for determining the net mass of all components
• 5 hermetic and programmable sealing clamps
• 10 optical detectors for precise adjustment of the final hematocrit
• 16 pre-loaded standard workflows
• Up to 50 programs with specialized SDMX software
• RFID reader and writer and barcode reader with Wi-Fi, Ethernet, or RS485 communication

GIOTTO MONZA CAN TRANSMIT THE FOLLOWING DATA TO SDMX FOR EACH SEPARATION PROCEDURE

• Serial number and Giotto identifier
• Number / description of the performed workflow
• Net mass of extracted plasma
• Net mass of red blood cell concentrate
• Net mass of leukotrombocyte layer
• Net mass of whole blood
• Net weight of the transferred anticoagulant solution
• Net mass of plasma transferred to the bag with the leukotrombocyte layer for dilution
• Mass of plasma transferred back to the main container
• Mass of plasma in other transfer containers
• Net weight of platelet concentrate
• Date of separation, time, duration
• Error codes, if any
• Dozens of various specially configured codes: barcodes or RFID tags.

SMART SOLUTIONS FOR EASE OF WORK

Spacious compartment with a press and easily opening doors with built-in springs allow for convenient and tidy placement of the blood container.

An additional second press allows for air removal, filter moistening, rapid transfer of the anticoagulant solution, and performing other additional operations for ideal separation of blood into components.

Giotto MONZA features specialized scales for the primary container and each transfer container, with real-time weighing, as well as transparent press doors with interchangeable front plates for customization. Any cannulas are easily bent in the holder of the main container. Optical sensors accurately detect color changes. All its sealing clamps and scales can be used separately as standalone equipment.

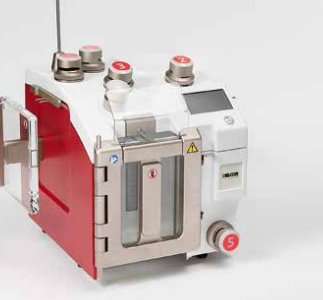

STURDY GLASS PRESS

Up to 2 smooth, fully flat, parallel presses that are easy to wash allow for workflow customization and precise control over volume, hematocrit, and leukotrombocyte layer level.

The new glass plate of the press ensures parallel movement, highly standardized behavior, and residual volume.

The level of the layer being transferred is precisely controlled by 10 optical detectors, allowing for accurate adjustment of the final hematocrit. Electronically controlled pressing motion provides precise settings, maximum safe pressure inside the container, thus preventing any mixing.

BUILT-IN RFID ANTENNAS

Up to 4 integrated RFID antennas next to the tray, press, and scales allow for bidirectional data exchange with full verification of data sequence without the need for operator intervention - a smart and transparent solution for instant separation of components.

Code processing can be performed from both barcodes and RFID tags; verification can be done using configured filters and/or fixed code masks. An internal database with automatic record keeping of all operations and separation procedures.
