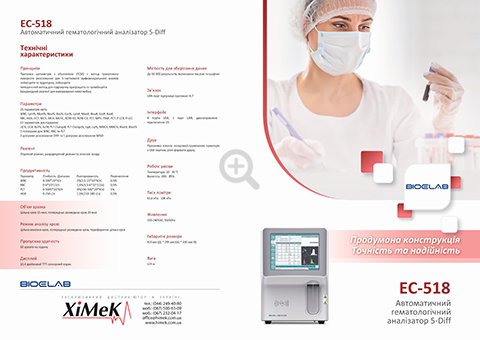

Автоматичний гематологічний аналізатор 5-Diff EC-518

Technical characteristics

Principles

Flow cytometry with membrane (FCM) + triangular laser scattering method for 5-part differential analysis of leukocytes and leukocyte count impedance method for erythrocyte and platelet count Cyanide-free reagent for measuring hemoglobin.

Options

• 25 report parameters: WBC, Lym%, Mon%, Neu%, Bas%, Eos%, Lym#, Mon#, Neu#, Eos#, Bas#, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, P-LCR, P-LCC.

• 12 test parameters: LIC%, LIC#, ALY%, ALY#, PLT Clumps#, PLT Clumps%, Lip#, Lip%, NRBC#, NRBC%, Blast#, Blast% 3 histograms for WBC, RBC and PLT.

• 3 DIFF scatterplots and 1 BASO scatterplot.

Reagent

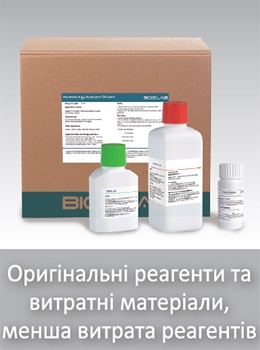

• Lysing solution, dilution solution and probe cleaner

Productivity

Features:

• Flow cytometry and laser scattering technology at an angle to triangular faces.

• Leukocyte differentiation into 5 fractions, 25 registered parameters and 12 research parameters, 3 histograms, 3 DIFF scatter plots and 1 BASO scatter plot

• Dual optical channel count including DIFF and basophil measurements

• Whole blood mode (OAK, OAK+DIFF), pre-dilution mode (OAK, OAK+DIFF)

• Powerful abnormal cell analysis capabilities

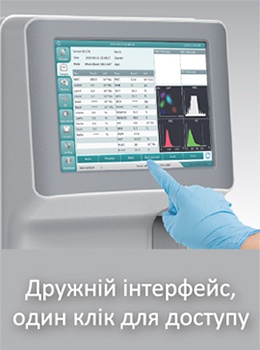

• Large 10.4-inch TFT touch display with user-friendly software, support for direct connection to USB printers of various types.

• Large memory capacity: up to 50,000 samples

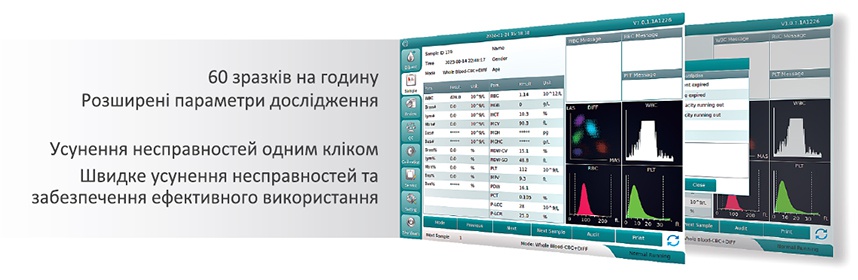

• Productivity: 60 samples per hour

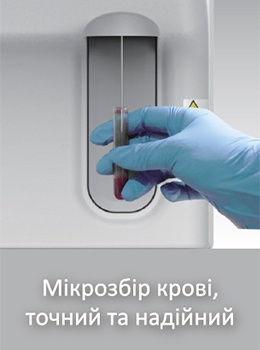

• Low sample consumption — 15 μl per analysis

• Compact size and light weight

• High accuracy in the range of linearity

• Good repeatability and low carryover

• Algorithm for optimizing account losses for High PLT
