ELECTRIC CART WITH ADJUSTABLE HEIGHT

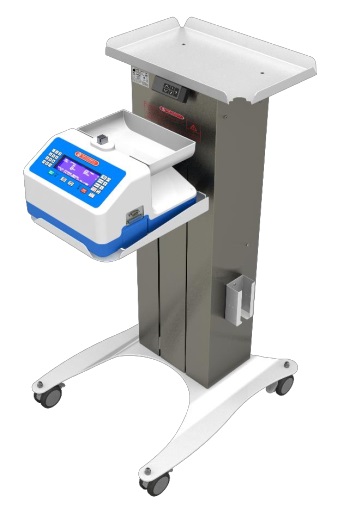

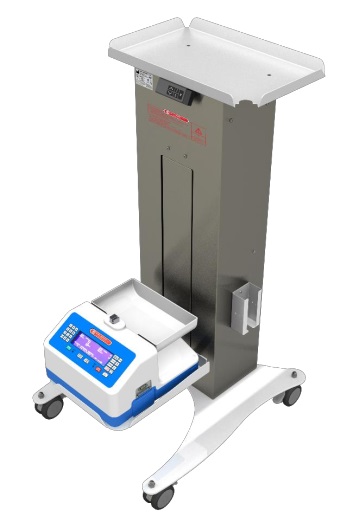

The electric cart model CARAVE04, swivel and with adjustable height, is designed for placing a mobile shelf for scales in the most convenient working position for the operator, allowing to avoid repeated bending.
The shelf can be easily set to the desired position without any effort from the operator thanks to the electric lifting system, which is controlled via the control panel.
The convenient display shows the height of the platform from the floor level. The control panel is also equipped with 3 functional buttons that allow the user to save and recall 3 different individually set heights. After pressing the corresponding button, the platform automatically moves to the saved height.
The convenient top (fixed) shelf is easy to clean and disinfect and is located at the operator's height to minimize bending. If necessary, it can be equipped with a holder for a barcode scanner.
The cart is equipped with four swivel wheels with brakes for easy movement within the department. Additionally, the cart is equipped with a pinch protection safety system (anti-pinch system).
It is also equipped with an electrical socket of 100–240 V AC for powering any electrical devices placed on the cart.
|
PRODUCT CODE |
CARAVE04 |
|---|---|
|
POWER SUPPLY |
100–240 V AC, 50/60 Hz, 145 VA |
|
ELECTRICAL OUTLET |
100–240 V AC, 50/60 Hz, max. 10 A |
|
SHELVES (SUPPORTS): |
4 swivel wheels with brake |
|
LOAD CAPACITY: |
Mobile shelf — max. 5 kg; top shelf — max. 5 kg |
|
CONSTRUCTION MATERIAL: |
Painted steel, stainless steel, painted aluminum, ABS plastic |
|
OPERATING TEMPERATURE: |
+10 °C to +40 °C, humidity: 30–75 % relative humidity without condensation |
|
WORKING MODE: |
Max. 1 min on / 8 min off |
|
OVERALL DIMENSIONS: |
538 × 655 × 1070 (H) mm |
|
SHELF SIZES FOR ITEMS: |
485 × 305 mm |
|
SHELF SIZES FOR SCALES: |
337 × 308 mm |
|
PACKAGING SIZES: |
600 × 730 × 1100 (H) mm |
|
HEIGHT OF SCALE SHELF FROM FLOOR: |
250 mm — minimum lower position 750 mm — maximum upper position |
|
HEIGHT OF ITEM SHELF FROM FLOOR: |
1050 mm |
|
SPEED: |
40 mm/s |
|
WEIGHT: |
34 kg |
|
CLASS OF MEDICAL DEVICE: |
CLASS I |
|
CLASS OF ELECTRICAL PROTECTION AGAINST INDIRECT CONTACT: |
Class 1 |
|
CND CODE: |
Z121799 |
|
