Medical freezers vertical at -40° KW (Italy)

MANUFACTURER

KW Apparecchi Scientifici S.r.l.
Via della Resistenza 119 - 53035 Monteriggioni (SI) - Italy

MODEL

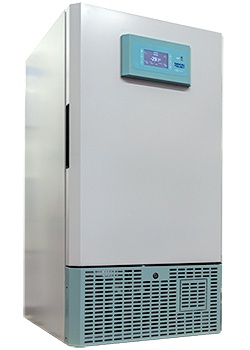

KBPF 600 HGD HTS
Vertical biomedical freezer -20°C/-40°C

TECHNICAL SPECIFICATIONS
Net storage volume	600 l
Temperature range	-20°C / -40°C
Ambient operating temperature	+10°C/+35°C, 70% R.H.
Power supply	230V ± 10% - 50Hz
Maximum power consumption	260 W
Daily energy consumption	4.20 kWh / 24 h
Noise level	< 45 dB

STRUCTURE
Internal surface	Stainless steel AISI 304
External surface	Galvanized pre-painted steel sheet
External dimensions	W 730 x D 933 x H 1985 mm
Internal dimensions	W 550 x D 744 x H 1425 mm
Weight	195 kg
Shipping size (with wooden box)	W 900 x D 1150 x H 2400 mm
Shipping size (with wooden box)	270 kg
Internal/External edges	Rounded for easy cleaning
Thermal insulation	90 mm (High-density polyurethane foam)
Standard adjustable wire shelves	5 pcs with steel coating (maximum load 35 kg each)
Door type	Single, solid construction - reversible Automatic closing system with opening < 90° - key lock system
Door sealing	Magnetic silicone gasket
Standard equipment	4 swivel wheels (2 with locking)
	Internal/External opening for sensor routing (Ø 25 mm)
	Internal automatic LED lighting

COOLING SYSTEM

• Cooling system: system with copper evaporator coils located on the side and bottom walls of the inner body

• Refrigerant: R290

• Condensation system: hermetic compressor with air condenser; ventilated cooling for maximum temperature uniformity

• Defrosting: automatic, with automatic evaporation of condensation water

STRUCTURE
HTS (Microprocessor Technology)
Screen	5-inch touch display
Temperature probes	n°1 Pt100 + n°1 NTC
Temperature control accuracy	± 0.1°C
Data recording format	.dat (software for PC provided for modifying and exporting downloaded data)
Available languages	Italian / English / German / French / Spanish / Danish / Croatian / Polish / Turkish
Access control system	Access to controller functions via a protective password (two-step security)
Special features	Real-time temperature graph on the screen
	The main screen displays the target temperature value, upper/lower temperature limits, battery charge level, date, and time
	Built-in memory (built-in 4 GB SD card) with data logger function (Automatic recording of temperatures and notification data more than 10 times)
	Data history menu for viewing and selecting temperature records, device events, and notifications
	Backup battery with self-recharging circuit (36 hours autonomy in case of power outage)
	Built-in voltage stabilizer with linear regulation (±20 Volts)
Connection	USB port	Dry contacts for remote notification signals
Main alarm list (Audio/Visual)	Power supply disconnection	Temperature sensor error
	High/low temperature (freely adjustable limits by the user)	Error / low charge level of backup battery
	Open doors	Thermal protection warning
	High pressure in the condenser	Warning of high load on the compressor
	High temperature in the condenser	Dirty condenser

• Additional adjustable wire shelf with steel coating

• RJ45 port for connection to LAN (TCP/IP Modbus) for BMS/SCADA and remote monitoring

• Stainless steel AISI 304 pull-out drawer with stainless steel front panel (max 10)

• Wi-Fi kit (TCP/IP Modbus) for connection to BMS/SCADA and remote monitoring

• Temperature sensor enclosed in a glycol bottle

• GSM module with SIM card support

• Weekly data logger on disks (includes 52 spare disks)

• Electric lock for opening doors with PIN code

• Voltage stabilizer

• Electric lock for opening doors with card/transponder
