Centrifuge medical floor with cooling Biobase BKC-BB6
The centrifuge — is a low-speed refrigerated centrifuge with a large capacity, which is ideal equipment for blood transfusion stations, hospitals of all levels, biochemistry laboratories, biological product manufacturing, as well as research institutions for blood separation, protein precipitation, cell separation, and collection.
✔ High-power AC motor with frequency conversion and direct drive, high precision, low noise level, long service life.
✔ Integral metal construction with multi-layer explosion-proof design, stainless steel centrifuge chamber combined with a multi-stage damping system to ensure stable operation and personnel safety.
✔ Uses an energy-efficient and environmentally friendly refrigeration system, precise temperature control, no environmental pollution.
✔ Microcomputer control, large color display. Programs can be created and stored, and speed, centrifugal force, and time can be displayed simultaneously.
✔ 10 levels of speed curves, 30 types of programs with customization and storage options for various experimental needs.
✔ Three-stage adjustable braking system, optimal centrifugal effect, electronic door lock, protection against overspeed, overheating, automatic fault diagnosis, multi-level protection for operational safety.
✔ Equipped with various rotors and adapters, capable of using bags with a volume of 0–550 ml according to different experiments.
✔ Can simultaneously centrifuge 8×200 ml or 4×400–500 ml blood bags.
Technical parameters
| Parameter | Value |
|---|---|
| Model | BKC-B86 |
| Maximum speed | 7000 rpm |
| Speed accuracy | ±20 rpm |
| Maximum RCF | 10956 × g |
| Maximum volume | 4 × 1200 ml |
| Cooling system | CFC-free compressor |
| Timer range | 0–99 hr 59 min 59 s |
| Temperature range | -20°C ~ +40°C |
| Temperature accuracy | ±1°C |
| Noise level | ≤60 dB |
| Power supply | AC220V 50Hz (standard), AC110V 60Hz (optional) |
| Rated power | 1500 W |
| External dimensions (W×D×H) | 670 × 820 × 900 mm |
| Packaging dimensions (W×D×H) | Main unit: 920 × 760 × 1100 mm; Rotor: 600 × 600 × 320 mm |
| Net weight | 210 kg |
| Gross weight | Main unit: 250 kg (220V), 260 kg (110V); Rotor: 25 kg |

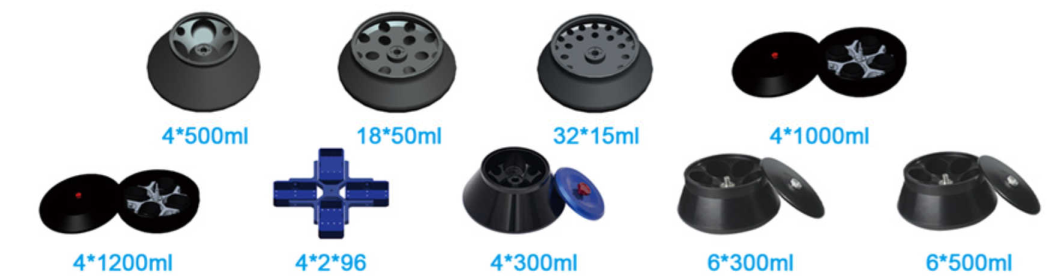

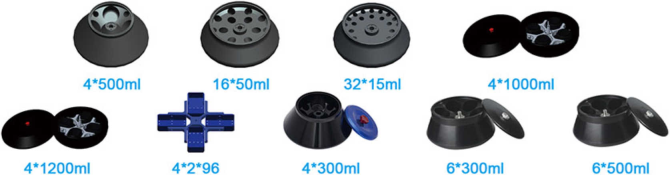

| № | Type | Max. capacity | Max. speed (rpm) | Max. RCF (×g) |
|---|---|---|---|---|
| NO.8D001 | Angle rotor | 4×500 ml | 7000 | 8897 |
| Adapter | 4×100 ml | |||
| Adapter | 4×3×50 ml | |||
| Adapter | 4×8×15/10 ml | |||
| NO.8D002 | Angle rotor | 16×50 ml | 7000 | 7121 |
| Adapter | 16×15 ml | |||
| Adapter | 16×10 ml | |||
| Adapter | 16×3×1.5 ml | |||
| NO.8D003 | Angle rotor | 32×15 ml | 7000 | 7300 |
| NO.8D004 | Swing rotor | 4×1000 ml | 4000 | 3989 |
| Adapter | 4×26×2–5 ml | |||
| Adapter | 4×15×15–10 ml | |||
| Adapter | 4×5×50 ml | |||
| Adapter | 4×3×100 ml | |||
| NO.8D005 | Swing rotor | 4×1200 ml | 4000 | 4025 |
| Adapter | 4×400–500 ml (blood bags) | |||
| Adapter | 8×200 ml (blood bags) | |||
| NO.8D006 | Rotor for microplates | 4×2×96 wells | 4000 | 2952 |
| Adapter | 4×32×1.5 ml | |||
| NO.8D007 | Angle rotor | 4×300 ml | 6000 | 5390 |
| NO.8D008 | Angle rotor | 6×300 ml | 6000 | 5660 |
| NO.8D009 | Swing rotor | 6×500 ml | 4000 | 3400 |
