Automatic biochemical analyzer AS-120

Fully automatic biochemical analyzer

• Constant speed of 120 tests per hour with dual reagent.

• Disposable cuvettes eliminate the need for washing solution and make the system simpler and more reliable.

• Effective solution for small laboratories.

• 80 reagent positions.

• Automatic liquid level detection, collision protection.

• Integrated complete closed optical system, multi-channel simultaneous detection.

• New reaction cuvettes made of amorphous optical plastic, ideal light transmission coefficient.

• Maintenance-free cooling system based on solid-state semiconductors.

• User-friendly interface and convenient operation.

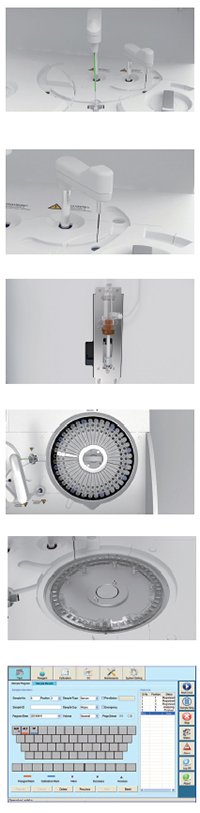

Multifunctional precise probe for sample collection External and internal polishing of mirrors, external and internal washing of the probe Special sampling probe equipped with a sensitive liquid sensor and timely feedback on reagent and sample residues Collision protection, automatic depth adjustment of the probe Excellent mixer design Teflon-coated mixer. No water droplets (reduced carryover) Excellent mixing effect with standard mixing procedure High-precision ceramic syringe Constant ceramic piston Accurate dosing up to 0.1 microliters Reagent and sample tray 80 reagent positions (40 for R1, 40 for R2) 40 sample positions, suitable for both micro and standard tubes Continuous cooling system with Peltier plate inside, 24 hours a day, 2°C - 14°C Barcode reader (optional) Reaction tray 50 disposable cuvettes for reaction Cuvette reaction volume up to 150 μl Stable and accurate temperature (37 ± 0.1°C) for reaction Modern operating system User-friendly software interface Automatic sample dilution (decrease, increase, normal) Automatic check and warning of reaction result, automatic check of calibration result, warning signal log Linear and nonlinear calibration, multi-channel calibration up to 8 points Quality control applied according to Westgard, L-T, cumulatively
