АВТОМАТИЧНИЙ БІОХІМІЧНИЙ АНАЛІЗАТОР AS-380

• Constant speed of 300 tests per hour with dual reagent

• 70 reagent positions

• Automatic liquid level detection, collision protection

• Integrated full closed optical system, multi-channel simultaneous detection

• New reaction cuvettes made of amorphous optical plastic, ideal light transmission coefficient

• Maintenance-free solid-state semiconductor cooling system

• User-friendly interface and convenient operation

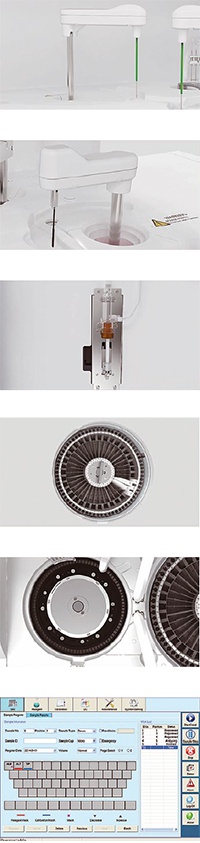

Multi-functional precise probe for sample collection

• External and internal polishing of mirrors, external and internal washing of the probe

• Special probe for sample collection, equipped with a sensitive liquid sensor and timely feedback on reagent and sample residues

• Collision protection, automatic probe depth adjustment

Excellent mixer design

• Mixer with Teflon coating. No water droplets (reduced carryover)

• Excellent mixing effect with standard mixing procedure

High-precision ceramic syringe

• Constant ceramic piston

• Accurate dosing down to 0.1 microliters

Reagent and sample tray

• 70 reagent positions

• 70 sample positions, suitable for both micro and standard tubes

• Continuous cooling system with Peltier plate inside, 24 hours a day, 2°C - 14°C

• Barcode reader (optional)

Reaction tray

• 90 cuvettes for reaction

• Reaction cuvette volume up to 150 µl

• Stable and accurate temperature (37 ± 0.1°C) for reaction

Modern operating system

• User-friendly software interface

• Automatic sample dilution (decrease, increase, normal)

• Automatic verification and warning of reaction result, automatic verification of calibration result, protocol of warning signals

• Linear and nonlinear calibration, multi-channel calibration up to 8 points

• Quality control applied according to Westgard, L-T, cumulatively

Technical Specifications

General Information

Analyzer type	Random access, open reagent
Testing speed	Constant 300 tests/hour (mono reagent or dual reagent)
Testing principle	Colorimetric method, turbidimetry
Testing method	1 point, 2 points, fixed time, Kinetics
Calibration type	Linear and nonlinear

Sample Module

Sample tray	70 sample positions
Sample tube	Micro and standard tube (Ø12-13) mm * (25-100) mm
Sample volume	2-30 µl, step 0.1 µl
Sample probe	Liquid surface detection, timely tracking of liquid volume. Collision avoidance
Barcode reader sample	Optional

Reagent Module

Reagent tray	80 reagent positions (40 for R1 & 40 for R2), Continuous cooling system with Peltier plate inside, 24 hours a day, 2°C - 14°C, open system, works with any reagents
Reagent volume	20-300 µl, step 1 µl
Reagent needle	Liquid surface detection, timely tracking of liquid volume. Collision avoidance
Barcode reader reagent	Optional

Reaction Module

Reaction tray	90 high-quality cuvettes. Reaction cups made of amorphous optical plastic, ideal light transmission coefficient
Reaction volume	150 – 350 µl
Reaction time	10 minutes
Temperature	Incubation system with Peltier plate, reaction temperature (37°C ± 0.1°C)

Mixing System

Mixer

Blade type, effective carryover prevention

Optical System

Light source	Halogen lamp
Wavelength	340 nm; 405 nm; 450 nm; 505 nm; 546 nm; 578 nm; 630 nm; 700 nm (there are also 4 more options)
Absorption range	0-4.0 Abs
Resolution	0.0001 Abs

Operating System

Operating system	Windows XP & Windows 7
Data processing	Windows XP, Windows 7, Windows 8, Windows 10 Automatic calibration, test combination, effective reagent time management, serum index, recognition of the entire process, linear enzyme expansion, blank subtraction, dirty cuvette memory, prevention of cross-contamination, patient information retention and entry of related patient information, automatic audit report, fuzzy data query, report statistics and printing, reference range signal classification, alarm information classification, user access level management.
Report printing	6 formats available, support for custom template
Interface	Network, TCP/IP
