Urilyzer ® 100 Pro – is a semi-automatic urine analyzer on test strips for reading the results of a single test strip. The system is equipped with modern operator control and quality control features, as well as enhanced connectivity options to meet the growing needs for compliance management and data collection. Urilyzer ® 100 Pro, including POCT features, is unique in its class.

fast – accessible – accurate

Proven standard that delivers more:
12 parameters + ACR

Key Benefits

• Ease of use

• Smart and safe operation

• Enhanced connectivity options

• POCT functions

Ease of Use

• The Start-Up Wizard guides the operator step-by-step through individual settings upon the first power-up of the device

• Automatic start of measurement after inserting the test strip for urine analysis ensures hygienic and clean operation of the analyzer

• Positive results, reminders, and alerts are displayed in color (e.g., red or yellow), making them easy to identify

• The user interface has a high level of personalization with flexible testing and reporting options

Smart and Safe Operation

• Tracking of LOT numbers for test strips and control solutions

• Data management with multiple filtering options

• Input of QC ranges via QR code

• Automated quality control (QC) with customizable reminders and lockout function

• The system allows assigning different access and security levels for individual users

Connectivity Options

• Data transmission via serial connection, USB, or TCP

• Various interfaces for connecting external barcode scanners and/or keyboards (USB or PS2)

• Supported protocols: HL7, LIS2 (ASTM+), POCT1-A2

POCT1-A2 Functions

• Validated for use with Siemens POCcelerator™, UniPOCT™, Abbott AegisPOC, and RADIOMETER AQURE Middleware*

• Remote configuration via middleware

• Automatic date and time synchronization

• Messaging function for communication with operators and/or other devices

• Positive patient identification (PPID)

• Remote software updates

• Test strip management

• Control solution management

• Inter-laboratory quality control function

Analizator

Technical Specifications

Parameter	Description
Type	Semi-automatic urine test strip analyzer
Measurement Method / Technology	Reflectometric photometer with 4 discrete wavelengths: 505, 530, 620, 660 nm
Measurement Parameters	12 parameters: Bilirubin, Urobilinogen, Ketones, Glucose, Protein (Albumin), Creatinine, Blood (Hemoglobin), pH, Nitrites, Leukocytes, Specific Gravity, Ascorbic Acid 11 parameters: Bilirubin, Urobilinogen, Ketones, Ascorbic Acid, Glucose, Protein (Albumin), Blood (Hemoglobin), pH, Nitrites, Leukocytes, Specific Gravity 7 parameters: Ketones, Glucose, Protein (Albumin), Blood (Hemoglobin), Nitrites, Leukocytes, pH 5 parameters: Glucose, Protein (Albumin), Blood (Hemoglobin), Nitrites, Leukocytes 2 parameters: Albumin, Creatinine
Performance	Up to 50 tests/hour (normal mode) Up to 120 tests/hour (fast mode)
Data Storage	Patient database: up to 3,000 tests QC database: up to 1,000 tests

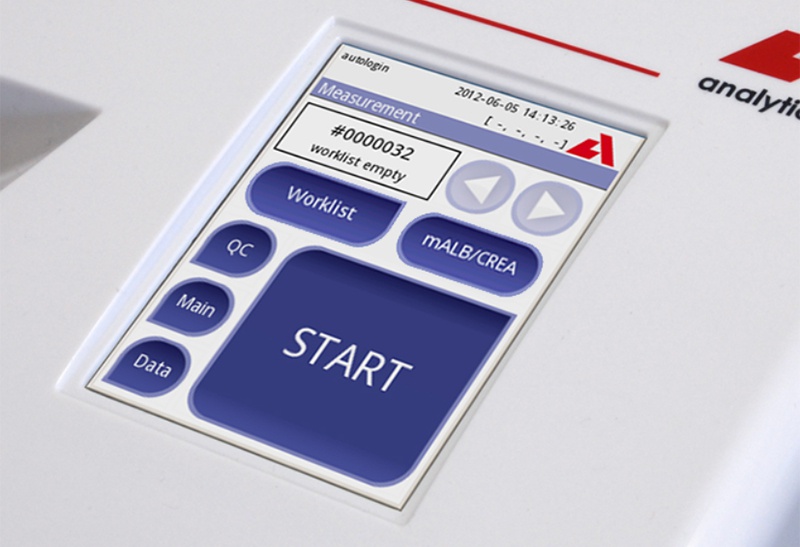

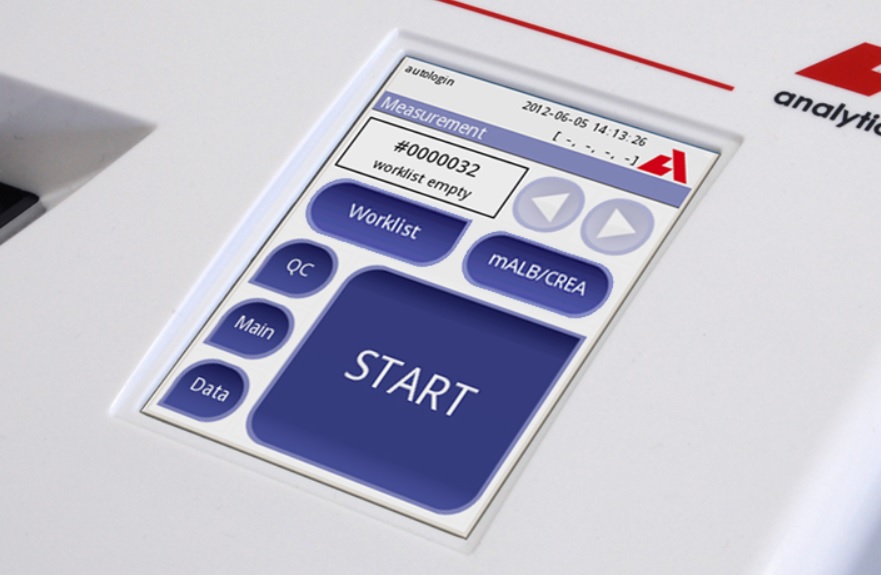

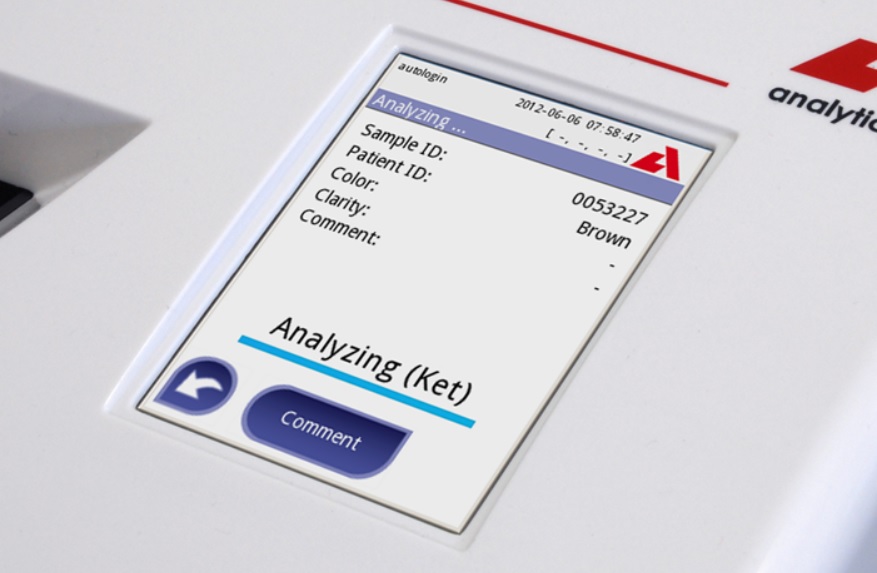

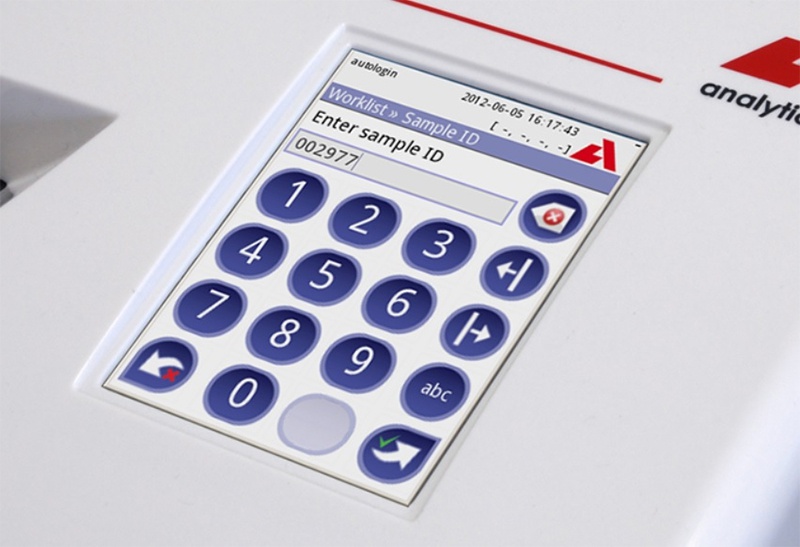

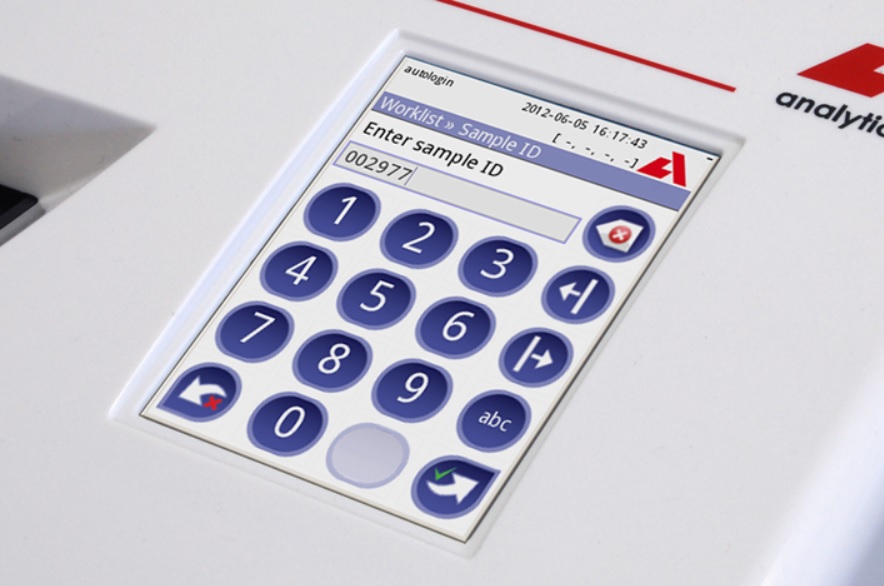

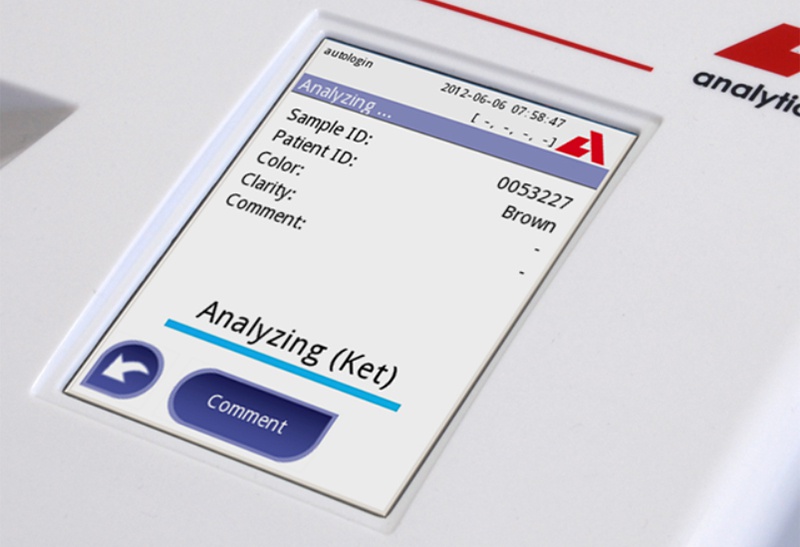

Display	3.5" QVGA touch LCD
Interfaces	RS232, USB Type A, USB Type B, PS2 (keyboard, barcode scanner), Ethernet
Dimensions (W×D×H)	206 × 280 × 74 mm
Weight	1.2 kg
Power Supply	100–240 V AC ±10%, 50/60 Hz, 2.5 W, external power adapter
Operating Conditions – Temperature	+15 °C … +32 °C
Operating Conditions – Humidity	30% – 80% (non-condensing)
Atmospheric Pressure	70 – 106 kPa
Printer	Built-in thermal printer
Barcode Reader	External
Protocols	LIS2 (ASTM+), HL7, POCT1-A2
Functions	Startup wizard, user management, quality control (QC), batch and expiration date management for test strips, automatic measurement, automatic printing/transmission of results, advanced data entry, sediment analysis recommendations

Consumables

Urine Test Strips

Name	Packaging	Article Number
CombiScreen® 12SYS PLUS	100 / 150 strips	94400 / 94450
CombiScreen® 11SYS PLUS	100 / 150 strips	94100 / 94150
CombiScreen® 7SYS PLUS	100 / 150 strips	94110 / 94110A
CombiScreen® 5SYS PLUS	100 strips	94109
CombiScreen® 11SYS	100 / 150 strips	93100 / 93150
CombiScreen® mALB / CREA	25 strips	94025

Control Materials

Name	Packaging	Article Number
CombiScreen® Dip Check	2 × 15 ml	93010
CombiScreen® Drop Check	2 × 5 ml	93015
