Напівавтоматичний аналізатор сечі (Urilyzer® 500 Pro)

Agile • accessible • accurate

Modern solution for urine diagnostics

User-friendly

• During the first startup, the setup wizard guides the user step-by-step through all individual parameters

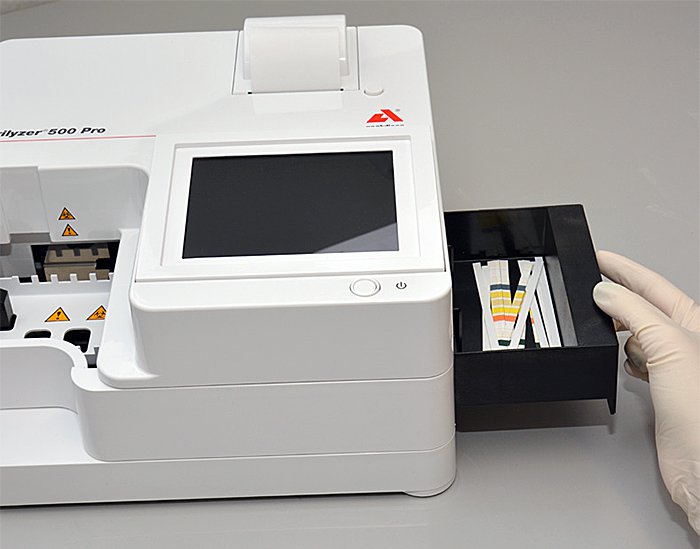

• Performance of up to 500 tests/hour due to the ability for continuous loading of test strips

• Positive results, reminders, and alerts are displayed in color (e.g., red or yellow), making them easier to identify

• Flexible menu with many automated functions that can be customized according to user needs

Intelligent data management

• Full traceability due to extended data entry (e.g., batch number and expiration date)

• Implemented protocols: LIS2 (ASTM+) and HL7

• Ability to connect an external barcode scanner or keyboard

Device description

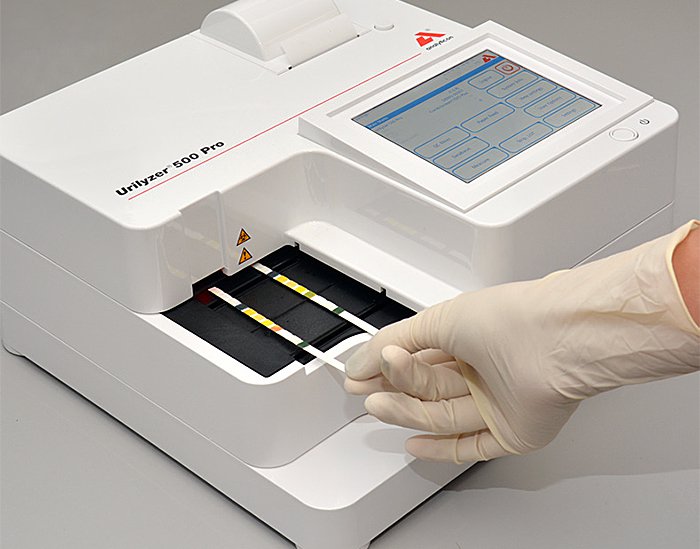

Urilyzer® 500 Pro — is a semi-automatic urine analyzer on the latest generation test strips. High throughput of up to 500 tests per hour combined with modern operator and data management features makes the system an ideal solution for medium and large laboratories, as well as for hospitals.

Quality control (QC) management

• Quality control ranges can be entered manually

• QC protocol settings according to regulatory requirements and laboratory standards

• QC reminder functions or device operation lock with customizable time intervals

• QC results are compared with reference values; stores up to 5000 QC records

Urilyzer® 500 Pro provides advanced quality control management capabilities and connectivity to meet the growing demands for compliance with standards and data collection. Combined with CombiScreen® 11SYS and 11SYS PLUS test strips, the system offers ease of use, high quality, and efficiency in a compact format.

Operator management

• Multiple levels of authorization

• Programmable operator management provides individual access levels and prevents unauthorized use

• Traceability of measurements and quality control procedures by specific user (password protected)

analyzer

Technical specifications of Urilyzer® 500 Pro

Parameter	Specification
Type	Semi-automatic urine analyzer on test strips with continuous loading
Measurement technology	Reflective photometer with 4 wavelengths: 505, 530, 620, 660 nm
Measurement parameters	Bilirubin, urobilinogen, ketones, ascorbic acid, glucose, protein (albumin), blood (hemoglobin), pH, nitrites, leukocytes, specific gravity
Performance	Up to 500 tests per hour
Data storage	Patient database: up to 5000 tests QC database: up to 5000 records

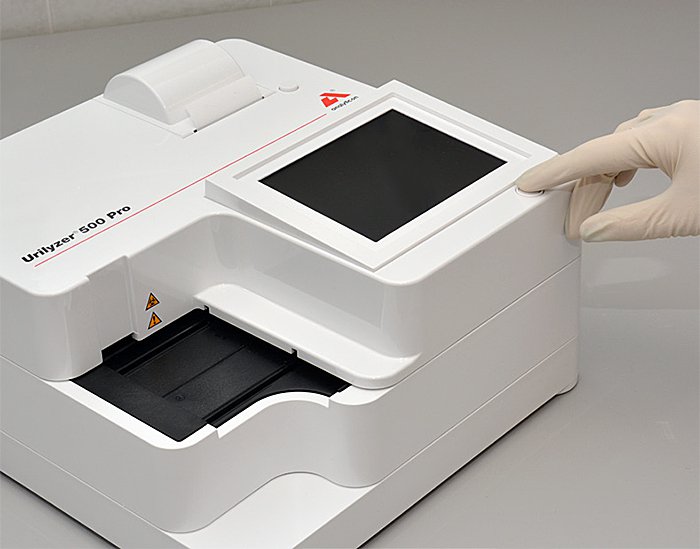

Display	5.7" LCD VGA, capacitive touchscreen
Connection interfaces	RS232, USB Type A, USB Type B, PS/2 (external keyboard, barcode scanner), Ethernet
Dimensions (W×D×H)	300 × 300 × 180 mm
Weight	6.5 kg
Power supply	100–240 V AC, 50/60 Hz / 12 V DC; 5 A
Operating conditions	Temperature: +15 °C – +32 °C Humidity: 20–85 % (non-condensing) Pressure: 70–106 kPa
Printer	Built-in thermal printer
Barcode scanner	External
Data exchange protocols	LIS2 (ASTM+), HL7

Consumables

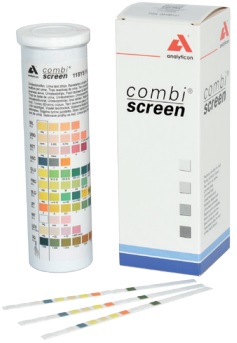

Urine Test Strips

Name	Packaging	Article
CombiScreen® 11SYS PLUS	100 / 150 strips	94100 / 94150
CombiScreen® 11SYS	100 / 150 strips	93100 / 93150

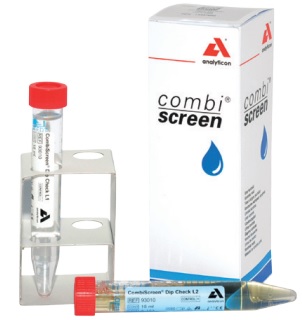

Control Materials

Name	Packaging	Article
CombiScreen® Dip Check	2 × 15 ml	93010
CombiScreen® Drop Check	2 × 5 ml	93015
