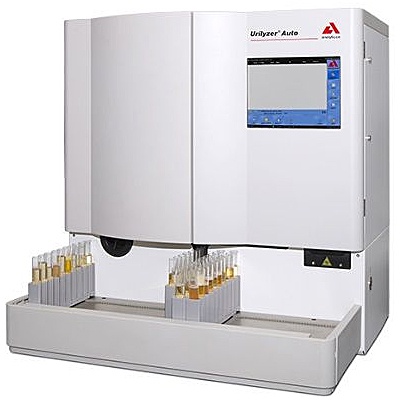

Автоматичний аналізатор сечі Urilyzer Auto

Functional capabilities

• Sample loading: up to 100 samples per cycle

• Test strip loading: up to 300 strips (2 tubes)

• Racks: 10 racks of 10 positions

• Minimum sample volume: 2 ml (native urine)

• Automatic sample mixing

• STAT function (priority analysis)

• Operator management

• Test strip and quality control management (full traceability for batch and expiration date)

• Data management

• Automatic printing or transmission of results

• Advanced testing and reporting capabilities (e.g., sediment examination recommendation)

• System solution: uses only distilled water, continuously connected

• RFID identification of racks

Efficient and economical

• Uses distilled water as the only system fluid

• Up to 300 tests can be performed using only 5 l of distilled water

• 10 racks of 10 positions provide a throughput of up to 240 tests/hour

• The device does not require user calibration — an automatic system test is performed at each startup

Simple and user-friendly

• Convenient loading of up to 300 CombiScreen® test strips into the feed container

• Built-in barcode scanner

• Intuitive menu with a color touchscreen

• Memory for up to 10,000 results

Reliable and accurate

• The photometer analyzes the intensity and color of light reflected from the test strip

• Four LEDs with wavelengths of 505, 530, 620, and 660 nm

• Minimum sample volume — only 2 ml, controlled by a liquid level sensor

• The Physical Measurement Module (PMC) provides accurate determination of urine specific gravity, turbidity, and color

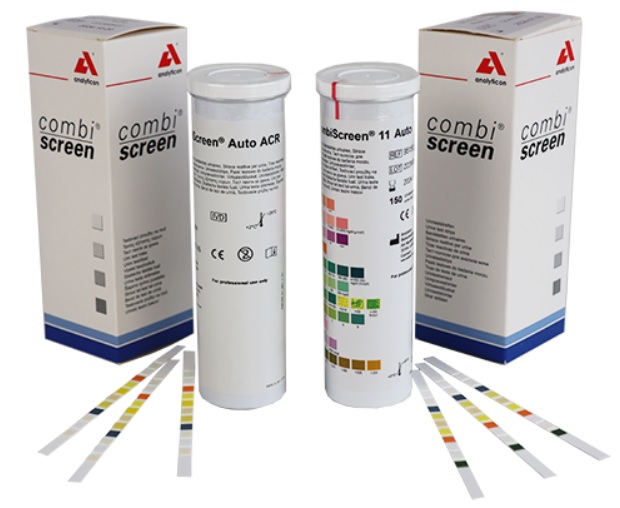

CombiScreen® test strips

CombiScreen® test strips are products for in vitro diagnostics (IVD) used as screening tests for the detection of:

• metabolic disorders (e.g., diabetes),

• liver diseases and hemolytic conditions,

• urogenital diseases (kidneys, ureters, bladder, urethra).

• Semi-quantitative results are automatically evaluated and generated by the device.

CombiScreen® test strips

CombiScreen® test strips are products for in vitro diagnostics (IVD) used as screening tests for the detection of:

• metabolic disorders (e.g., diabetes),

• liver diseases and hemolytic conditions,

• urogenital diseases (kidneys, ureters, bladder, urethra).

Semi-quantitative results are automatically evaluated and generated by the device.

Compatible test strips

CombiScreen® 11 Auto

Screening test for:

• metabolic disorders

• urogenital, liver, and hemolytic diseases
Parameters: BIL, UBG, KET, ASC, GLU, PRO, BLD, pH, NIT, LEU, SG

CombiScreen® Auto ACR

Additionally for the determination of micro- and macroalbuminuria
Parameters: BIL, UBG, KET, ASC, GLU, PRO, CREA, BLD, pH, NIT, ALB, LEU

Advantages of Auto ACR:

• Fast and economical method without the need for 24-hour urine collection

• The albumin/creatinine ratio provides accurate information regardless of urine concentration

• Automatic calculation and evaluation of albumin–creatinine and protein–creatinine ratios
